Yttrium Iron Garnet YIG Microwave ferrite

Product Description

Ningbo Chiyue Magnet Factory is a domestic recognized leader in the field of Microwave ferrite/gyromagnetic ferrite in China .Based on many years' scientific and practical experience,we produce and sell in the area of magnetism and its applications.



Narrow LineWidth Garnet Microwave Ferrite Material -YIG Series :



YGA Moderate continuous power material series:

Spinal nickel gyramagnetic microwave ferrite material series:



Spinal nickel gyramagnetic microwave ferrite power material series:



Spinal lithium microwave ferrite material series:



Spinal lithium microwave ferrite power material series:

Microwave Ferrites, Microwave Ferrite and Ceramic, Garnet & Ferrite (Microwave), Narrow Linewidth Ferrite Material, Microwave Ferrite Based Components, Nickel Spinels  Microwave Ferrite, Lithium Spinels Microwave Ferrite



Introduction

Microwave ferrite magnets can generate constant magnetic field to control electric current so that microwave signal is amplified and information can be smoothly transmitted. Microwave magnets are widely used in magnetrons, cathode-ray tubes, isolators, circulator, etc. These electronic components are commonly applied in radars, satellite communications, remote control systems, electronic tracking, electronic countermeasures, etc.



Exceptional Microwave Performance

YIG microwave ferrite features low loss tangent (<0.0002 at microwave frequencies) and a narrow linewidth below 1 Oe at 3 GHz, enabling precise signal control at high frequencies. Its high dielectric constant and density support robust, reliable application across telecommunications, radar, and satellite communications, ensuring consistent, distortion-free operation.


Customized Solutions for Diverse Applications

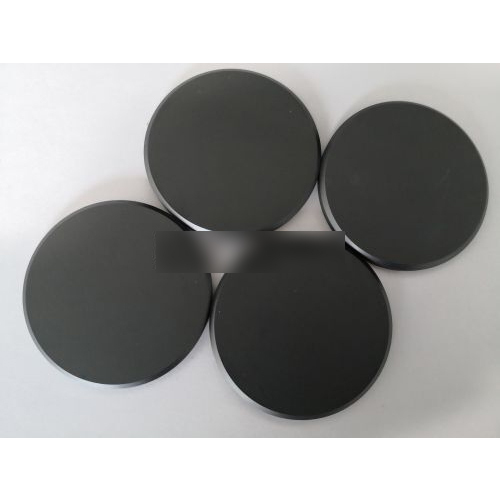

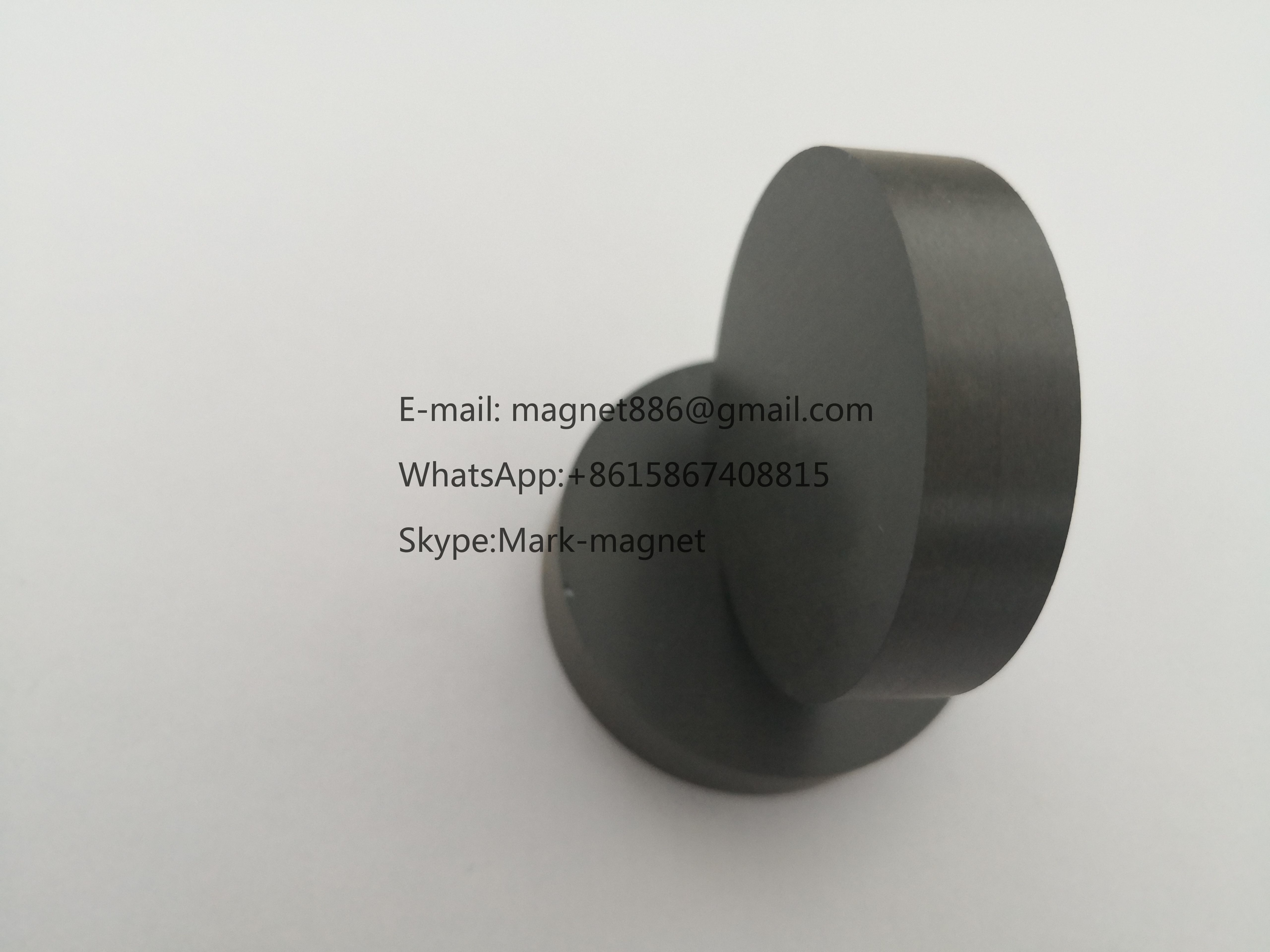

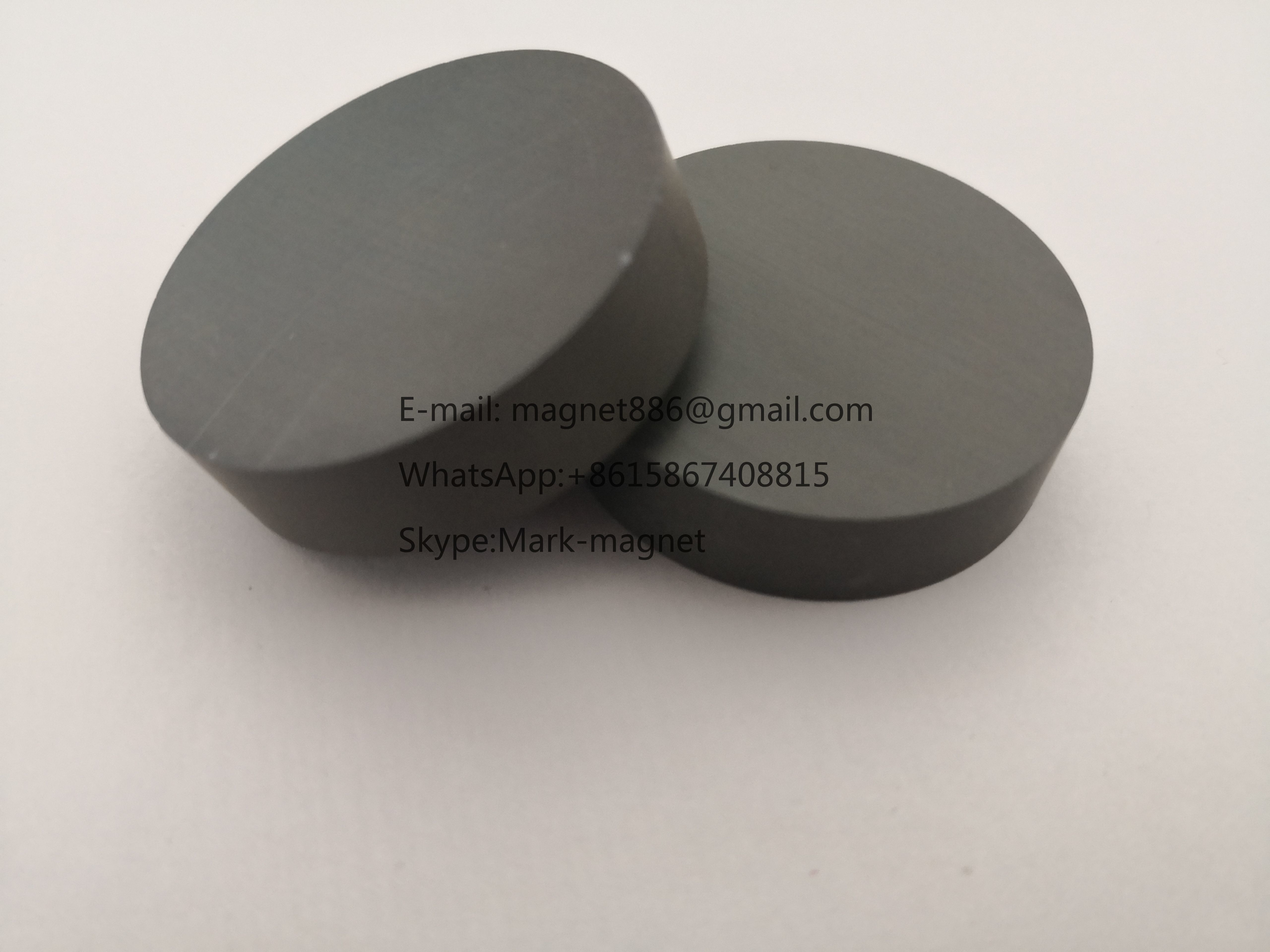

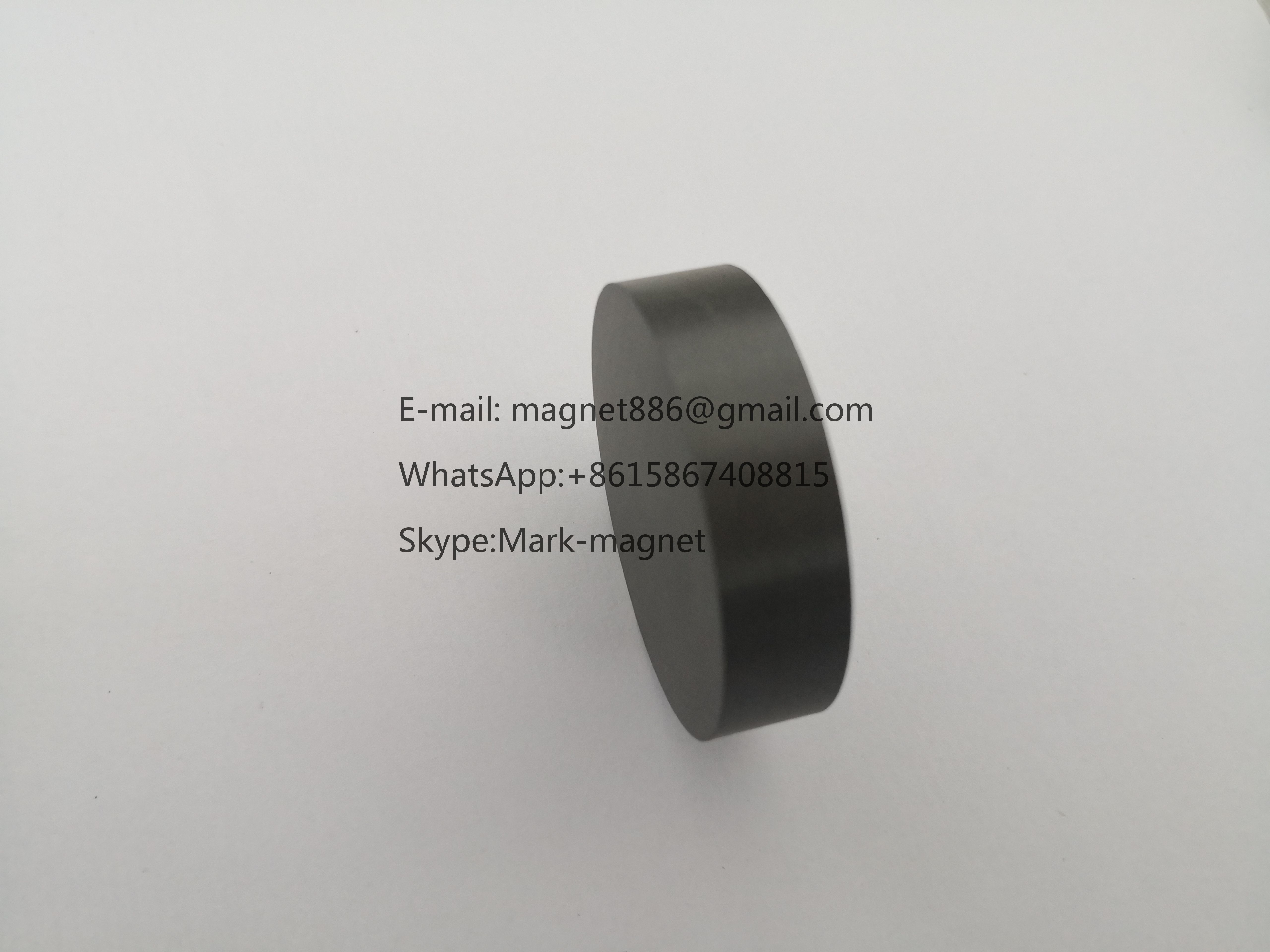

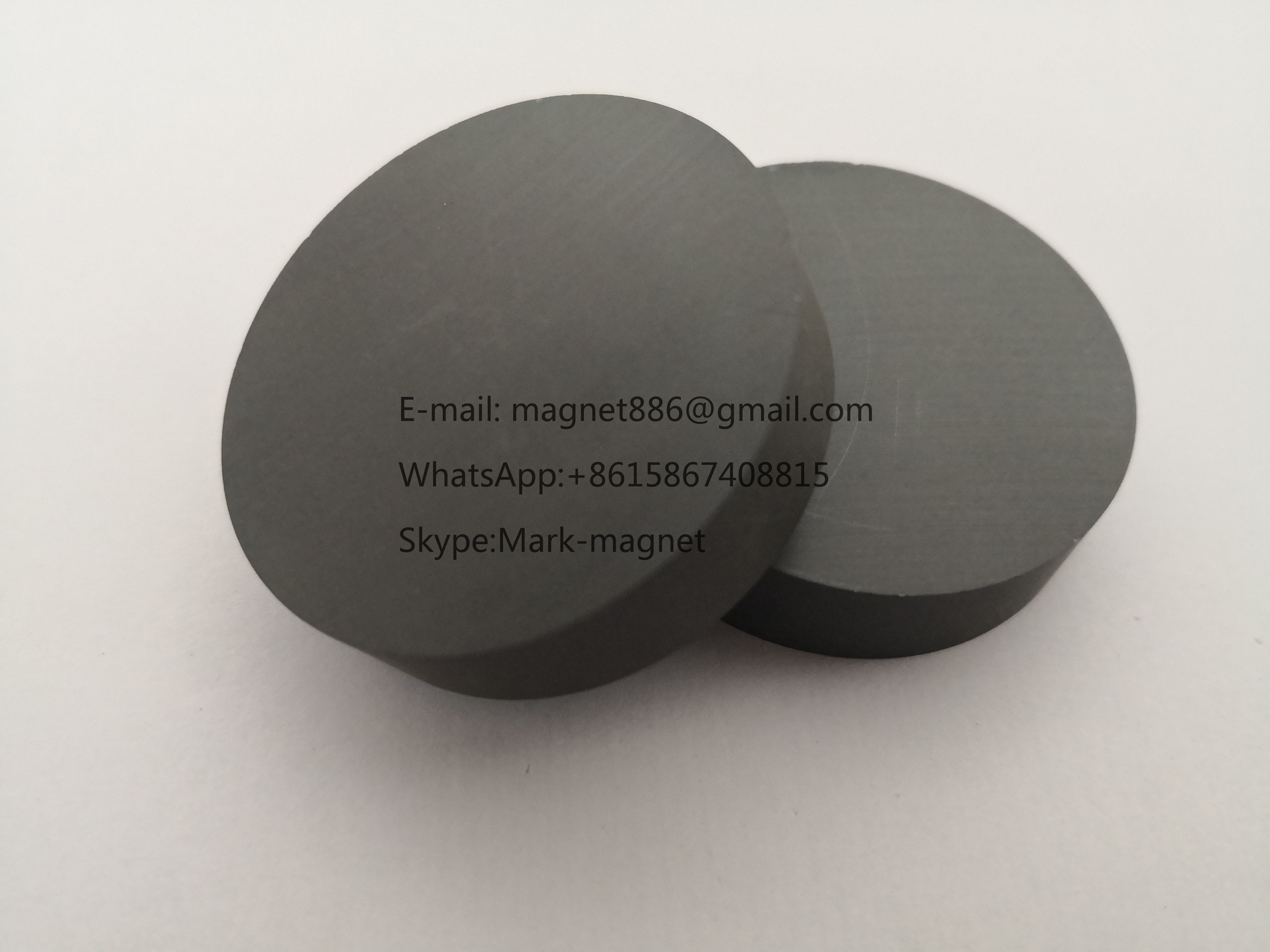

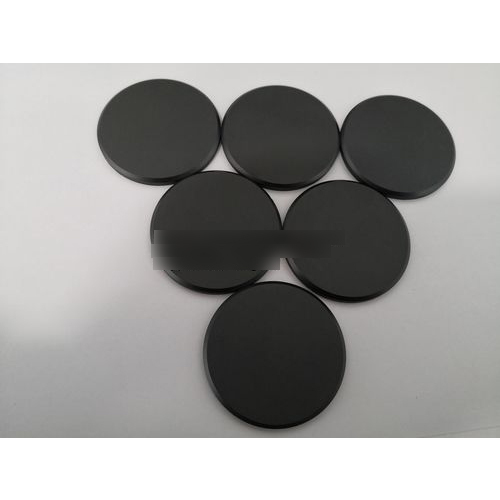

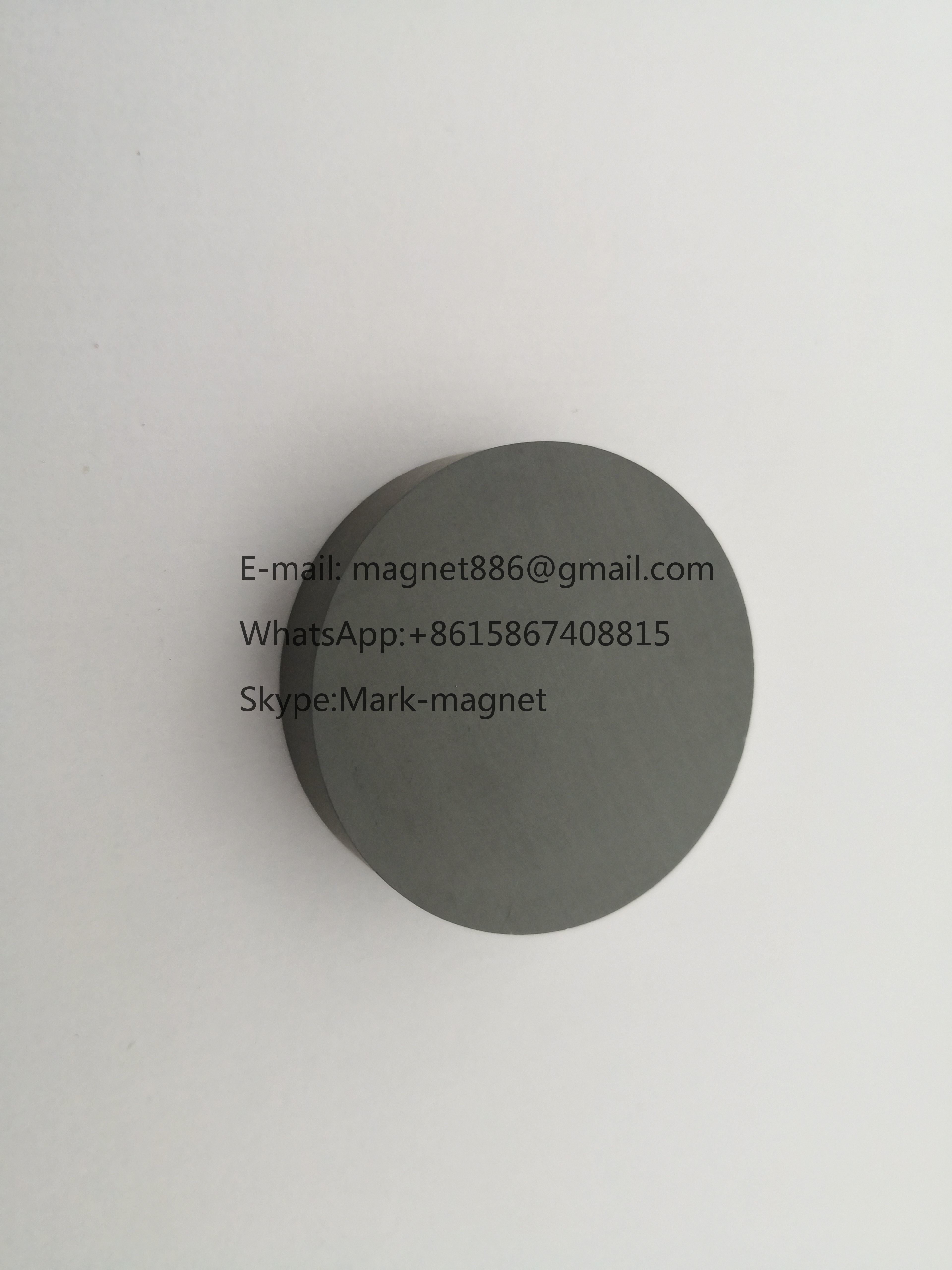

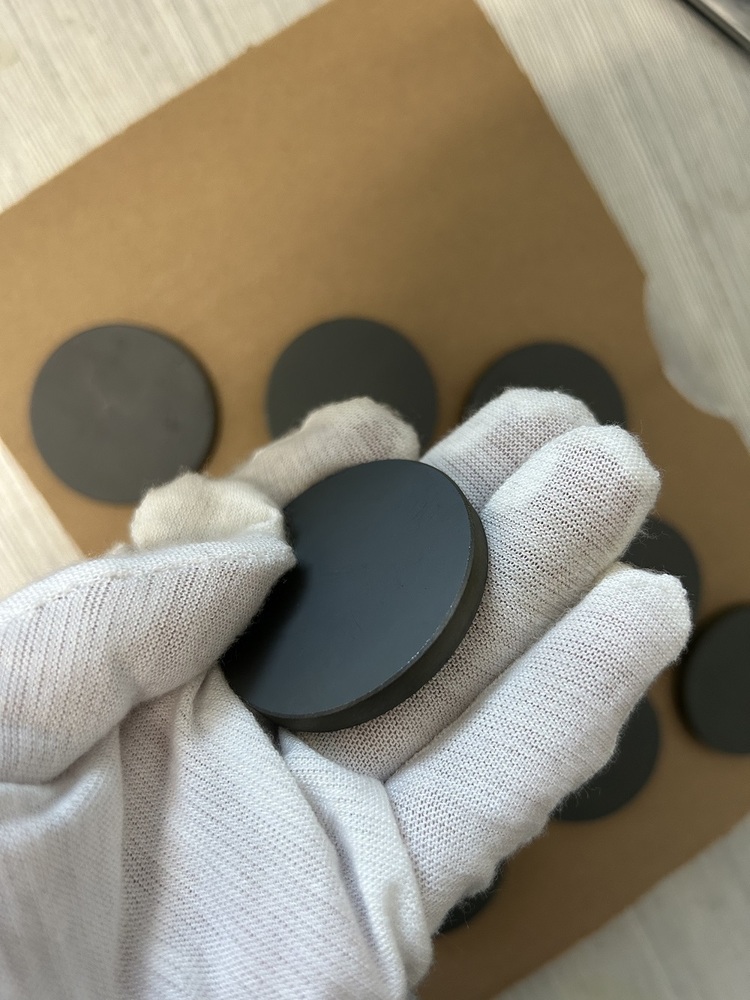

Available in standard and custom dimensions, typically ranging from 0.5 mm to 10 mm diameter, YIG ferrite components can be tailored to meet specific demands. Choose from disk or sphere shapes, or order custom geometries to best suit your microwave device, filter, or integrated circuit design. Professional polishing ensures a quality surface finish for integration.


High Stability and Reliability

With high thermal stability and a Curie temperature above 560C, YIG ferrite maintains performance under intense thermal conditions. Its high resistivity and soft magnetic characteristics make it ideal for microwave devices requiring minimal power loss and reliable, long-term performance. This ensures success in critical applications like radar, satellite, and telecom operations.
