Narrow Linewidth Microwave Ferrite - Narrow Linewidth materials for above resonance applications; G-810, G-1010, G-1210& G-113 are all suitable for below resonance applications.
CHIYUE is a manufacturer of microwave ferrite materials for the wireless industry in China. Our products range from high volume garnets for wireless infrastucture to specialized
materials for radar applications. Applications require materials which work best in above resonance devices from 100 MHz to around 3 GHz, and another range of materials which suit devices working below resonance from about 1 GHz to 40 GHz or more.
Another set of materials are available for high power applications.
Some have suitable switching properties for devices based on below resonance phase shifting.
Narrow Line Width Garnet Microwave Ferrite Material -YIG Series :
YGA Moderate continuous power material series:
Spinal nickel gyramagnetic microwave ferrite material series:
Spinal nickel gyramagnetic microwave ferrite power material series:
Spinal lithium microwave ferrite material series:
Spinal lithium microwave ferrite power material series:
Microwave Ferrites, Microwave Ferrite and Ceramic, Garnet & Ferrite (Microwave), Narrow Linewidth Ferrite Material, Microwave Ferrite Based Components, Nickel Spinels Microwave Ferrite, Lithium Spinels Microwave Ferrite
Â· At the expense of high specific electrical resistivity (Ï >106 OmÂ·sm) ferrites are characterised by low dielectric losses at high frequencies tgÎ´=10-2Ã·10-4).
Â· Dielectric permittivity Îµâ (about 10-15)
Â· Thermal stability in a wide temperature range
Â· The high activity is being determined by the value of minimal bias which is essential for required nominal parameters providing.
Â· Saturation magnetization, M s; 4ÏMs (400-5000 G)
Â· The width of resonance curve 2ÎH is one of the main parameters characterising properties of ferrites applied in high-frequency band. The yttrium-iron monocrystals exhibit the minimal value 2ÎH =0.3-0.5 Oe. The width of resonanse curve of polycrystalline ferrites varies from 30â¦40 to 800-1000 Oe.

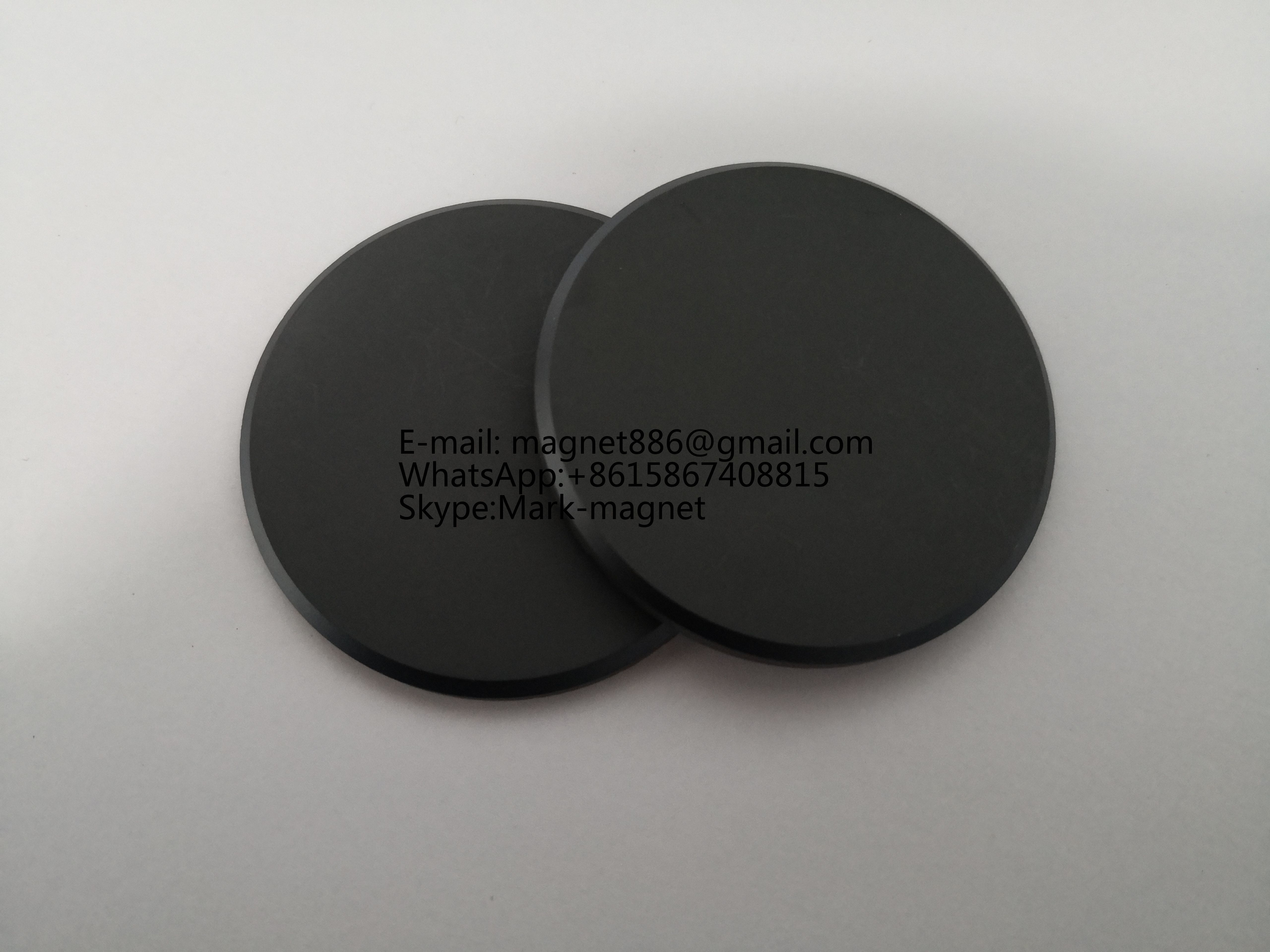

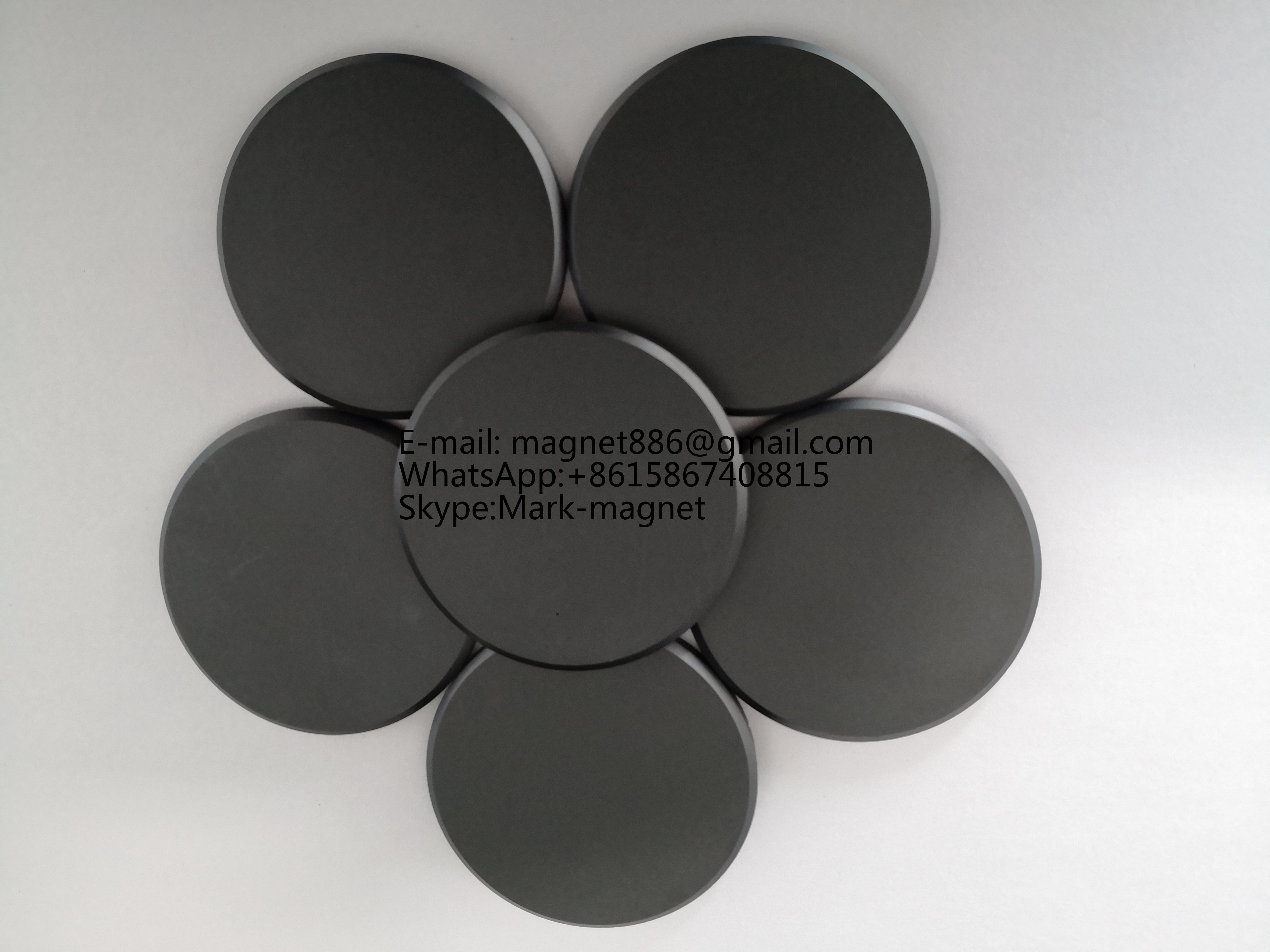

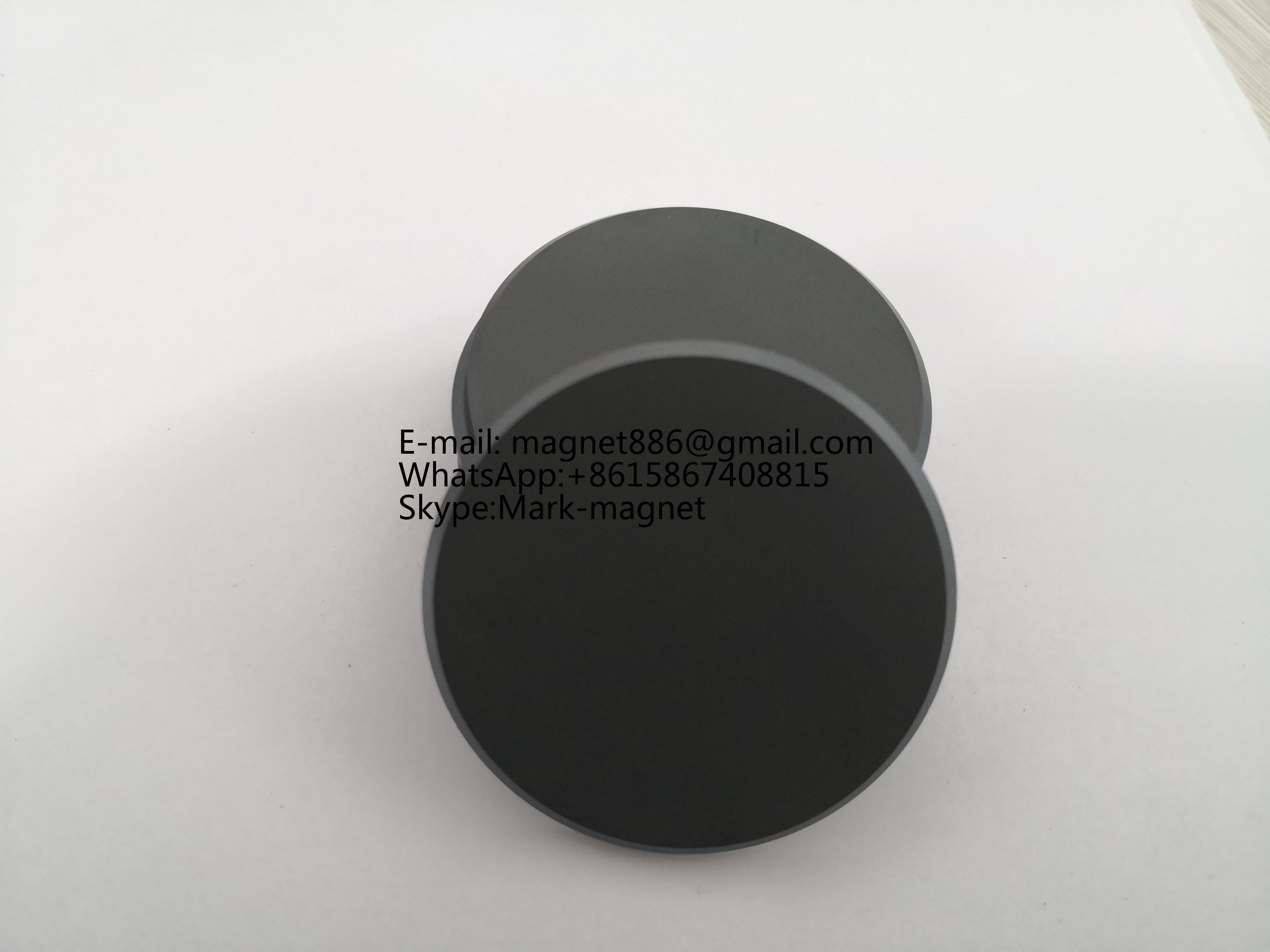

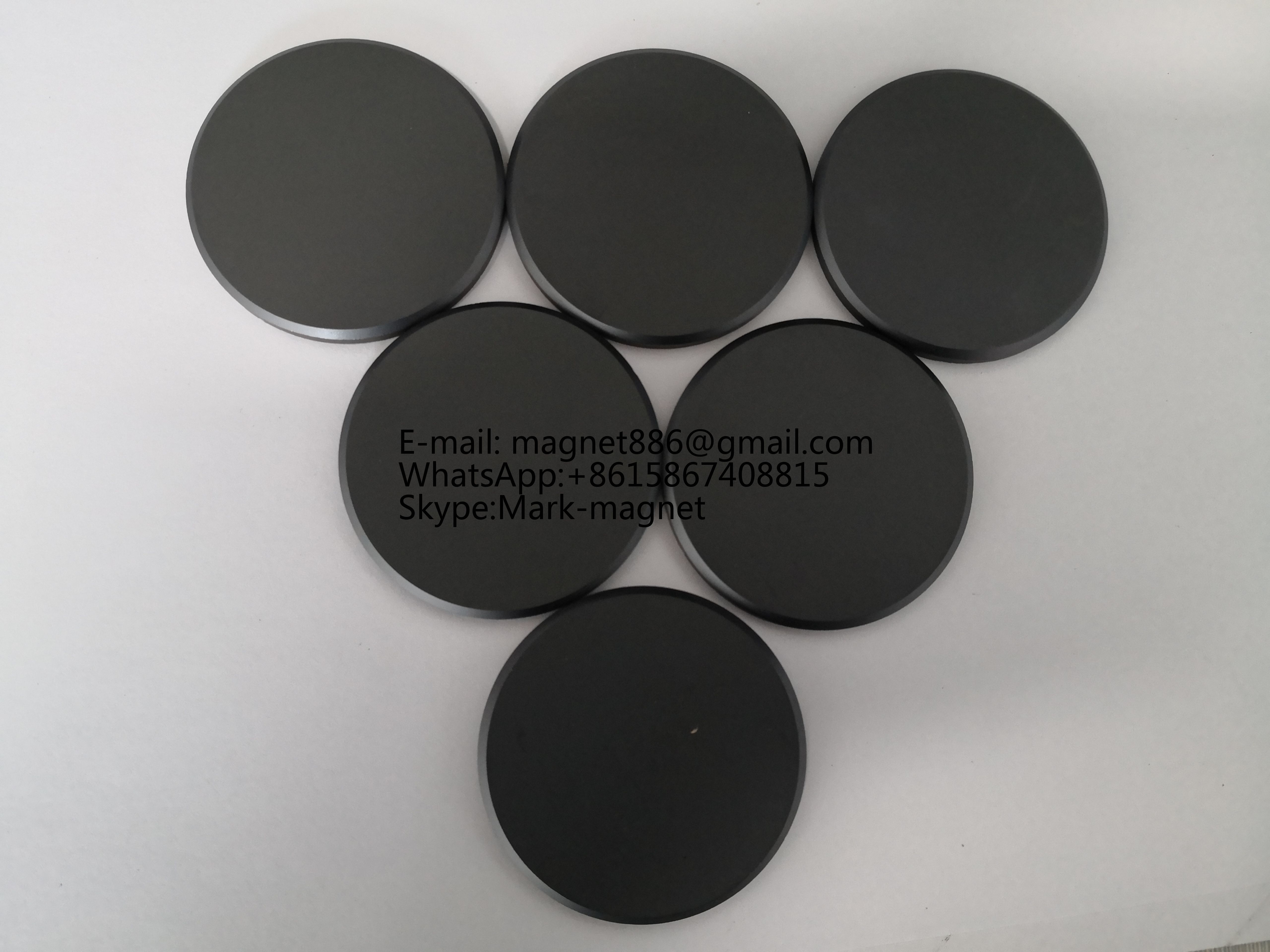

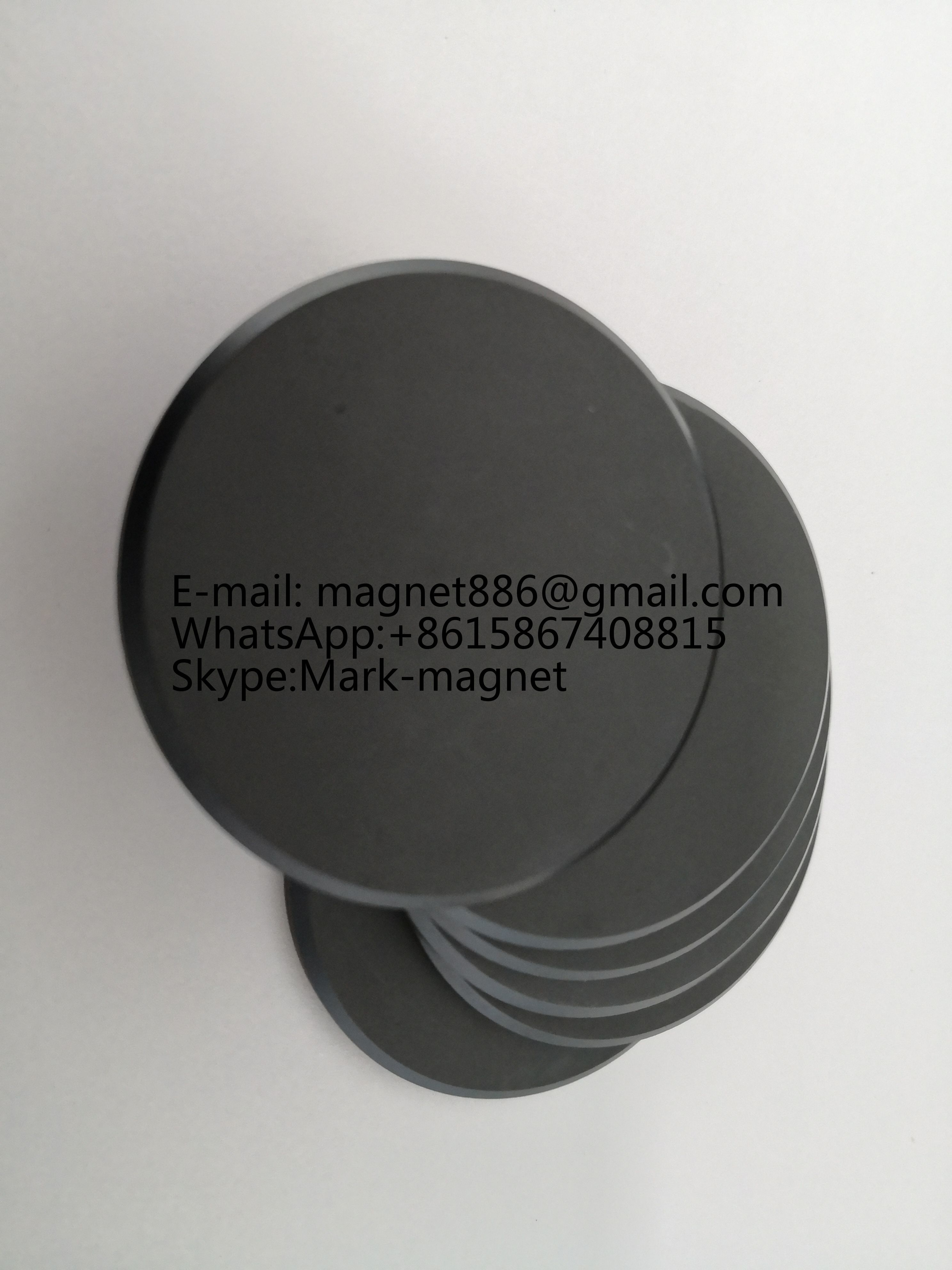

Microwave ferrite shapes:
|Diameter: 1-55 mm
maximal size: 50.8 x 50.8 mm
thickness: 0.5-3 mm
max diameter: 12mm
max length: 90 mm
||Ferrites and dielectric materials
Microwave Ferrite Materials
Materials on the base of yttrium iron garnets
Materials on the base od compunds with spinel structure
Designed for isolator and circulator sub-systems used in a wide range of frequencies in radio-communication systems, Ferrite materials are available in disc or triangular formats or as custom designs. The materials are based on CHIYUE formulations, offering low deltaH (ÎH) values that are effective in reducing IMD.
By associating the ferrites with a dielectric material, it is possible to develop a wide choice of composites for miniaturizing isolator/circulator designs.
Garnet & Spinel ferrites: Space/Defense/Telecommunications
Ferrite-Dielectric assembly: Telecommunications
Acid or Alkali Liquor
2. Organic Solvent
4. Water or Oil
6. Active Gas like Chlorine, Ammonia, Oxynitride
7. Radiation or Radioactive Rays
Microwave Ferrite Material Series:
Li ferrite material series:
Ni ferrite material series:
Ni ferrite high power material series:
General garnet material series:
Narrow line width garnet material series:
High power and low temperature coefficient garnet material:
Microwave high-Q ferrite resonator series:
Microwave Ferrites & Magnetic Materials include:
Aluminum & Aluminum Gadolinium Substituted Garnets
Gadolinum Substituted Garnets
Cobalt & Holmium Doped Garnets
Absorbers & Inductors
Magnesium Aluminum Titanate
Magnesium Calcium Titanate
