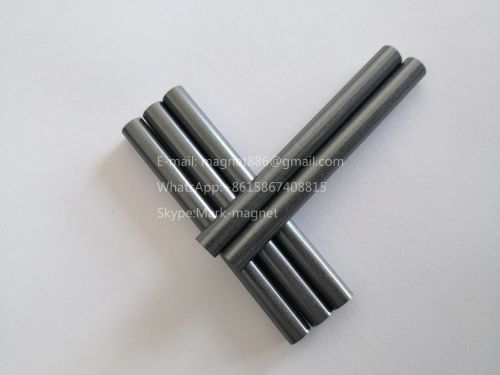

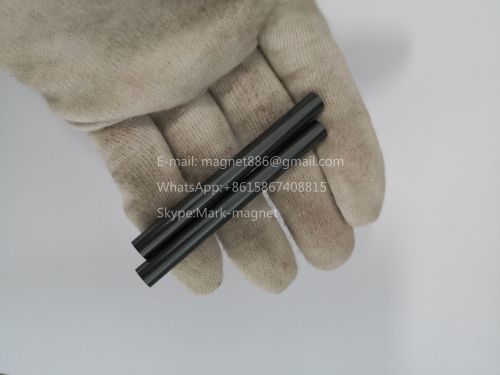

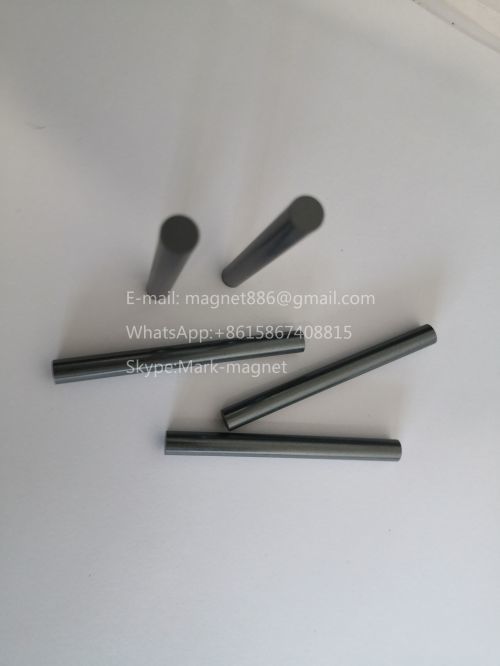

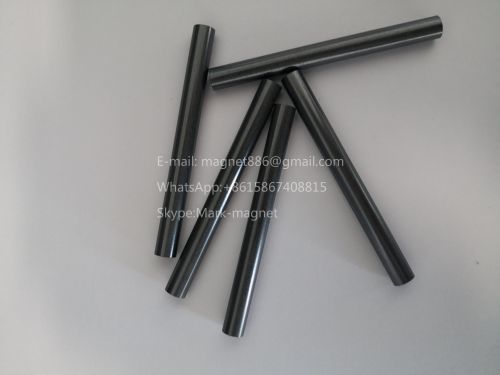

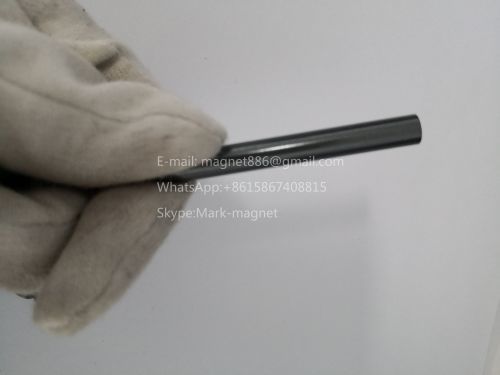

Microwave Ferrite for 5G mmwave phased array antenna module

Product Description

Ningbo Chiyue Magnet Factory is a domestic recognized leader in the field of Microwave ferrite/gyromagnetic ferrite in China .Based on many years' scientific and practical experience,we produce and sell in the area of magnetism and its applications.



Narrow LineWidth Garnet Microwave Ferrite Material -YIG Series :



YGA Moderate continuous power material series:

Spinal nickel gyramagnetic microwave ferrite material series:



Spinal nickel gyramagnetic microwave ferrite power material series:



Spinal lithium microwave ferrite material series:



Spinal lithium microwave ferrite power material series:

Microwave Ferrites, Microwave Ferrite and Ceramic, Garnet & Ferrite (Microwave), Narrow Linewidth Ferrite Material, Microwave Ferrite Based Components, Nickel Spinels  Microwave Ferrite, Lithium Spinels Microwave Ferrite



Introduction

Microwave ferrite magnets can generate constant magnetic field to control electric current so that microwave signal is amplified and information can be smoothly transmitted. Microwave magnets are widely used in magnetrons, cathode-ray tubes, isolators, circulator, etc. These electronic components are commonly applied in radars, satellite communications, remote control systems, electronic tracking, electronic countermeasures, etc.



Precision-Engineered for mmWave Applications

Optimized for the 5G mmWave band, this microwave ferrite offers exceptional magnetic and dielectric properties tailored for phased array antenna modules. Its customizable options in permeability, shape, and size provide design flexibility, while high electrical isolation and low insertion loss guarantee reliable RF signal performance.


Highly Customizable and Easy to Integrate

Manufactured to client specifications, the ferrite is available in a variety of shapesfrom discs to ringsand sizes ranging from 1 mm to 50 mm. Suitable for surface mount, solder, or press-fit integration, this component simplifies phased array system assembly and supports rapid prototyping as well as high-volume production.


Robustness and Reliability in Any Environment

Withstanding storage temperatures from -55C to +150C and operational ranges between -40C and +125C, this ferrite is ideal for harsh conditions. High resistivity (~10^6 cm), strong corrosion and moisture resistance, and RoHS compliance ensure long-term performance and environmental safety.
