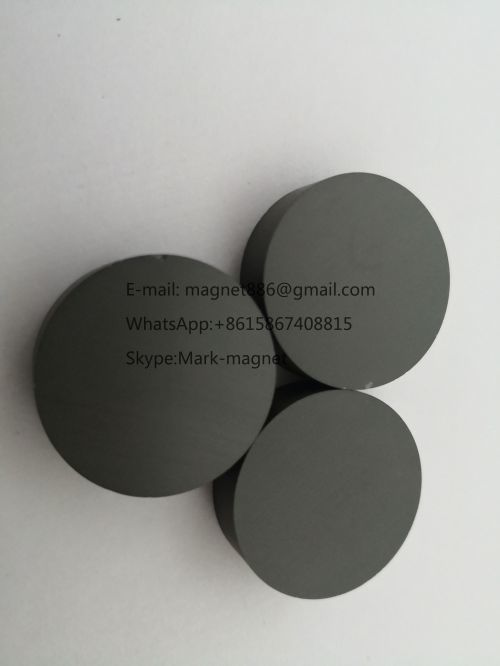

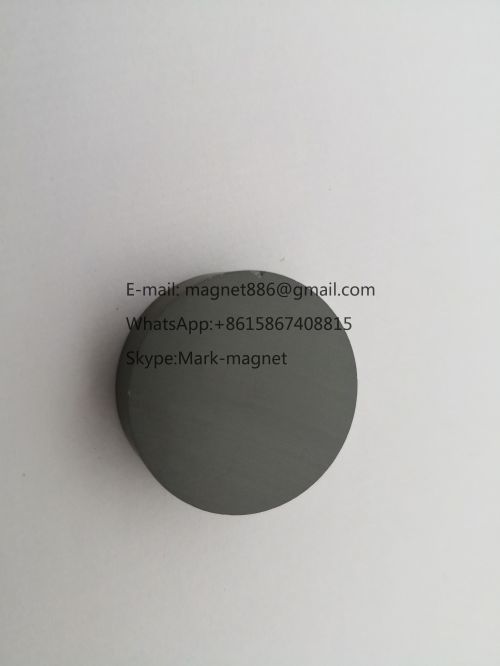

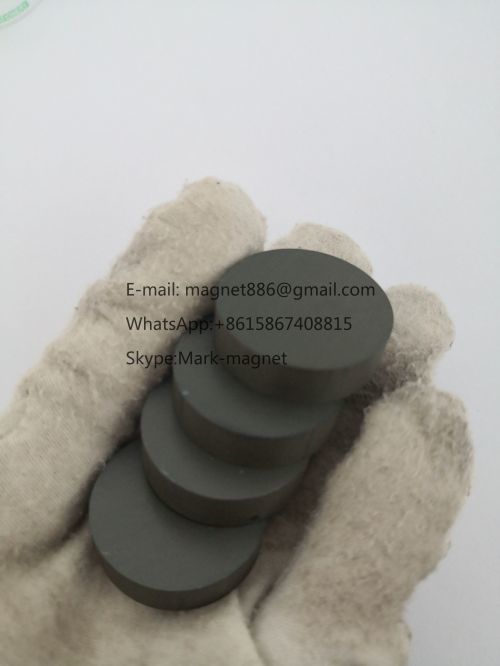

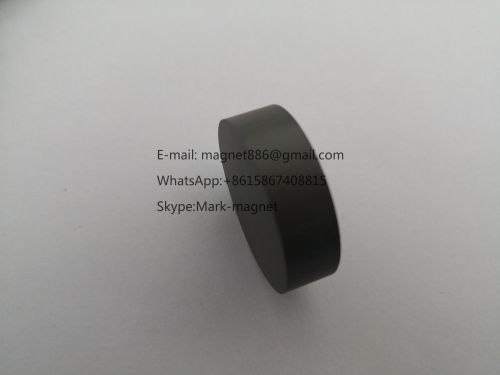

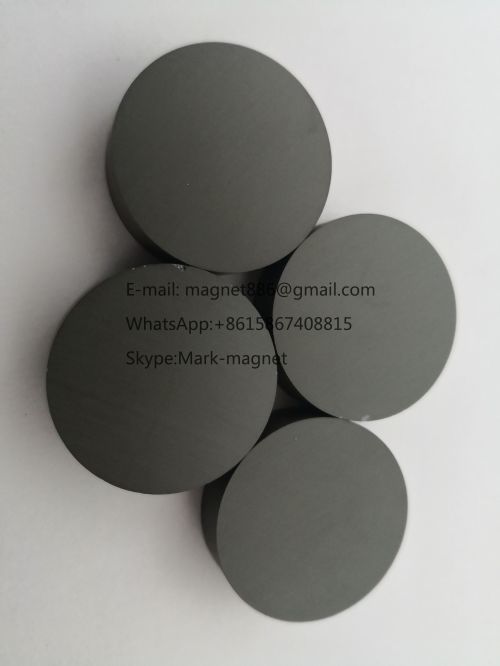

HG Holmium Garnet Microwave ferrite

Get a Price/Quote

Product Details:

Power Up to 500 W depending on application
Composite Holmium Garnet Microwave Ferrite
Material Holmium Garnet (Ho3Fe5O12)
Voltage Up to 2 kV
Surface Finish Polished or Sintered
Magnet Grade Technical Grade, High Purity
Power Supply DC Powered
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HG Holmium Garnet Microwave ferrite Price And Quantity

Minimum Order Quantity 1000 Piece

HG Holmium Garnet Microwave ferrite Product Specifications

Weight Varies; typically 15-50 grams per unit
Usage & Applications Used in microwave communication and radar systems, RF circuits
Application Microwave and RF devices, circulators, isolators, phase shifters
Frequency Microwave range, typically 1 GHz - 18 GHz
Magnet Type Ferrite
Color Brownish Black
Power Supply DC Powered
Size Range Customizable, standard: 2 mm - 20 mm diameters
Magnet Grade Technical Grade, High Purity
Shape Disc, Ring, Custom shapes
Capacity Standard and custom units
Surface Finish Polished or Sintered
Product Type Holmium Garnet Microwave Ferrite
Magnet Category Microwave Ferrite
Voltage Up to 2 kV
Material Holmium Garnet (Ho3Fe5O12)
Composite Holmium Garnet Microwave Ferrite
Power Up to 500 W depending on application

HG Holmium Garnet Microwave ferrite Trade Information

Payment Terms Paypal, Western Union, Telegraphic Transfer (T/T)
Supply Ability 100000 Piece Per Month
Delivery Time 25 Days
Main Domestic Market All India

Product Description

Ningbo Chiyue Magnet Factory is a domestic recognized leader in the field of Microwave ferrite/gyromagnetic ferrite in China .Based on many years' scientific and practical experience,we produce and sell in the area of magnetism and its applications.
Any question,Please contact us:

Narrow LineWidth Garnet Microwave Ferrite Material -YIG Series :

YGA Moderate continuous power material series:

Spinal nickel gyramagnetic microwave ferrite material series: Spinal nickel series.png

Spinal nickel gyramagnetic microwave ferrite power material series:

Spinal nickel power.png

Spinal lithium microwave ferrite material series:

Spinal lithium microwave ferrite power material series:

Li powder.png

Microwave Ferrites, Microwave Ferrite and Ceramic, Garnet & Ferrite (Microwave), Narrow Linewidth Ferrite Material, Microwave Ferrite Based Components, Nickel Spinels Microwave Ferrite, Lithium Spinels Microwave Ferrite

Introduction

Microwave ferrite magnets can generate constant magnetic field to control electric current so that microwave signal is amplified and information can be smoothly transmitted. Microwave magnets are widely used in magnetrons, cathode-ray tubes, isolators, circulator, etc. These electronic components are commonly applied in radars, satellite communications, remote control systems, electronic tracking, electronic countermeasures, etc.

Microwave Ferrites

Advanced Performance for Microwave Applications

HG Holmium Garnet Microwave Ferrite offers exceptional magnetic and thermal attributes, making it highly suitable for demanding RF and microwave device requirements. With precise line width (HWHM < 5 Oe) and impressive loss characteristics, this ferrite ensures efficient signal processing and minimal losses at high frequencies.

Versatile Customization Options

Customers can choose from a range of standard diameters (2 mm - 20 mm) or request custom sizes and shapes, such as discs or rings, to match their unique device needs. The ferrite can be finished in polished or sintered states, providing flexibility for various installation and interface requirements.

Reliable and Safe for Critical Environments

Engineered with a high Curie temperature and broad operating range (-40C to +120C), this ferrite maintains stability in extreme conditions. High resistivity and RoHS compliance contribute to its safe integration in sensitive communications, radar, and power systems.

FAQ's of HG Holmium Garnet Microwave ferrite:

Q: How is HG Holmium Garnet Microwave Ferrite typically used in RF and microwave devices?

A: This ferrite serves as a core material in devices such as circulators, isolators, and phase shifters within RF and microwave communication and radar systems. Its magnetic properties help control the propagation and direction of microwave signals, enhancing device performance and signal integrity.

Q: What benefits does the high Curie temperature of ~370C provide?

A: A Curie temperature of approximately 370C allows the ferrite to retain its magnetic properties at elevated temperatures, ensuring reliable performance and extended operational life even in high-power or high-temperature environments.

Q: When should I select HG Holmium Garnet Microwave Ferrite over other ferrites?

A: Select this ferrite when you require exceptional thermal and frequency stability, very low loss, and high resistivity in your RF or microwave applications-particularly where performance at higher frequencies and temperatures is critical, such as in advanced radar or satellite communications.

Q: Where is this ferrite manufactured and distributed from?

A: HG Holmium Garnet Microwave Ferrite is manufactured, exported, supplied, and distributed by companies based in China, offering global availability through various distribution channels to meet industry requirements worldwide.

Q: What processes are involved in manufacturing and finishing these ferrite components?

A: Production involves sintering high-purity holmium garnet materials, followed by precision machining into specified shapes and sizes. The final pieces can be provided with a polished or standard sintered finish, depending on the application and customer preference.

Q: How does the high resistivity of >10^12 cm impact usage?

A: Such high resistivity allows the ferrite to minimize unwanted eddy current losses, maintaining signal clarity and efficiency even in high-frequency or high-voltage applications. This makes it suitable for use in high-performance microwave and RF environments.

Q: What packaging and compliance options are available?

A: HG Holmium Garnet Microwave Ferrite can be supplied in box, individual wrap, or tray formats for safe transport and handling. All units are RoHS compliant, supporting environmental and safety standards for modern electronic manufacturing.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Microwave Ferrites' category

YGD Microwave ferrite Yttrium-Iron Garnets Gd In Doped Price : 65 USD ($)/Piece Minimum Order Quantity : 1000 Color : Dark brown to black Product Type : Other, Doped Yttrium Iron Garnet Ferrite Magnet Category : Other, Soft Ferrite Composite : Yttrium Iron Garnet (YIG) with Gadolinium (Gd) and Indium (In) doping Magnet Type : Other, Ferrite Shape : Other, Disc, rod, or custom shapes Material : Gd, Indoped Yttrium Iron Garnet (YIG) ferrite Application : Microwave devices, circulators, isolators, resonators, and phase shifters Size Range : Customizable; commonly from 1 mm to several centimeters Surface Finish : Polished or assintered Voltage : N/A (Passive material) Weight : Dependent on component design and size Usage & Applications : Used in RF/microwave signal processing, telecommunications, radar, and magnetic field sensing equipment Frequency : Microwave frequency range, typically 120 GHz Power : N/A (Material dependent on device usage) Magnet Grade : Custom per application; not industrially graded

Send Inquiry

LF Lithium Ferrite Spinel Microwave ferrite Price : 50 USD ($)/Piece Minimum Order Quantity : 1000 Color : Dark Brown/Black Product Type : Other, Microwave Ferrite Material Magnet Category : Other, Soft Ferrite Composite : Lithium Ferrite Spinel Magnet Type : Ferrite Magnet Shape : Other, Disc, ring, or custom shapes Material : Lithium Ferrite (LiFe5O8 or similar spinel ferrite) Application : Microwave isolators, circulators, RF components Size Range : Customizable as per application Surface Finish : Sintered finish Voltage : Not Applicable (passive material) Weight : Varies according to dimensions (customized) Usage & Applications : Radar, telecommunications, satellite, microwave devices Frequency : Microwave frequency range (typically 800 MHz to 8 GHz) Power : Suitable for highfrequency, lowloss applications Magnet Grade : LF Series

Send Inquiry

Microwave ferrite for MPCVD Reactor for Laboratory diamond growth Price : 300 USD ($)/Piece Minimum Order Quantity : 3000 Color : black Product Type : Magnets Magnet Category : Solenoid Magnets Composite : microwave ferrite Magnet Type : Ceramic Magnet Shape : Other Application : isolator Size Range : D43*5mm*60 Weight : 6 Grams (g)

Send Inquiry

Microwave Ferrite for Phase Shifter High Saturation Low Loss for 5G Networks Price : 100.0 USD ($)/Piece Minimum Order Quantity : 100 Color : black Product Type : Magnets Magnet Category : Solenoid Magnets Magnet Type : Ferrite Magnet Material : microwave ferrite Application : Isolator, Circulator, Phase Shifter Surface Finish : N/A Frequency : 0.3300 Kilohertz ( KHZ )

Send Inquiry

SEND INQUIRY CALL ME FREE
